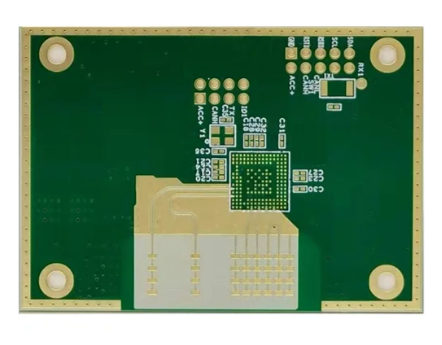

Name: 77G millimeter wave radar board
Plate: Rogers RO4835+FR4
Dielectric constant: high frequency material dielectric constant 3.48
Medium thickness: 4mil(0.1mm)
Number of floors: 6
Plate thickness: 1.2mm
Copper thickness: inner and outer layer 1oz
Via: Resin jack
Surface process: chemical precipitation
Thermal conductivity: 0.69w/m.k
Loss: 0.003
